The modern railings of the Cast Stairs Excellence collection furnish with style.

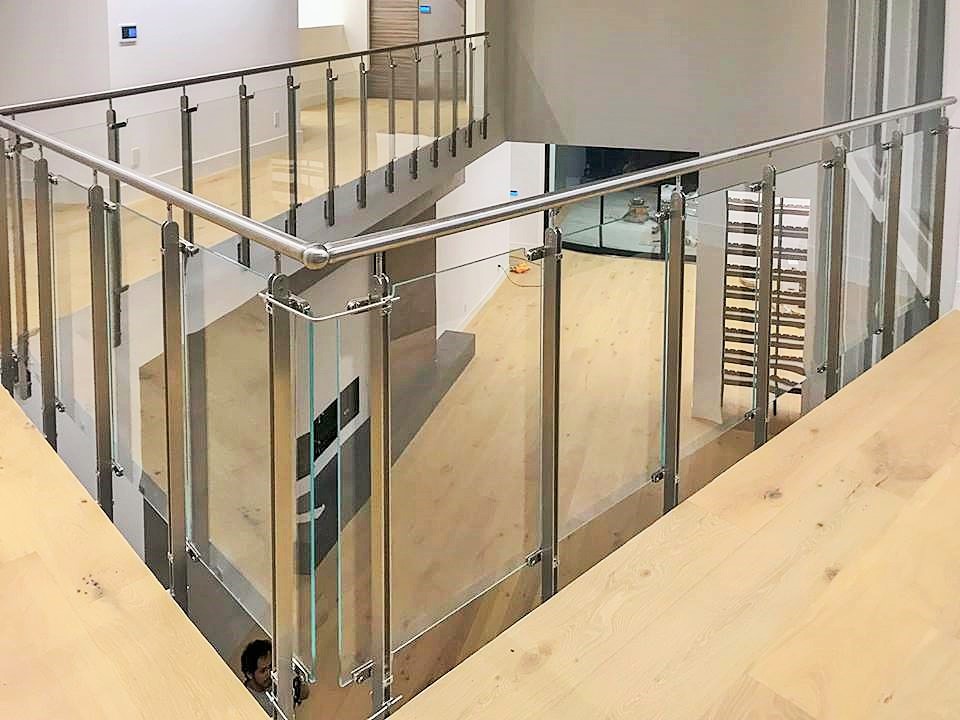

The View railing is applied to the open staircases of the CAST production, but also to masonry stairs or protective balustrades.
The possible fixings are to the floor by means of a base foot and to the side by means of a special fixing.
The railing is made up of a 30×5 mm double plate column in Aisi 304 stainless steel and a 4+4 mm thick laminated tempered glass panel.
Standard glasses are standard transparent and extra-clear version. The standard handrail is in stainless steel with a diameter of ø 42 mm pre-drilled and equipped with the column connections already screwed.
Stiffener fittings allow the railing to secure and connect to adjacent walls or railings.
Available in the painted iron version called View Iron.
Data sheet
- Indoor railing
- Applicable with fixing to the floor and lateral to the slab
- Railing column composed of 2 stainless steel plates 30×5 mm in Aisi 304 stainless steel
- Tempered and laminated glass panels with a thickness of 4+4 mm
- Transparent color glass panels cod. 400 or extra clear cod. 401
- Tubular handrail with a diameter of 42 mm in stainless steel
- Available in the version with View Iron painted columns
Category: Balustrades and stair railings
Attributes: glass panels, stainless steel railing, glass railing, modern railing
